HBLHBL

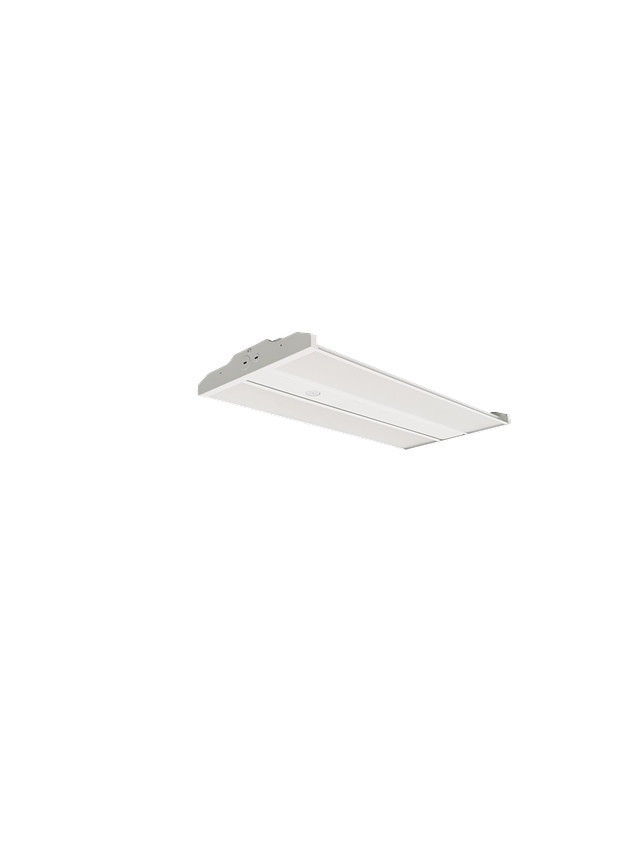

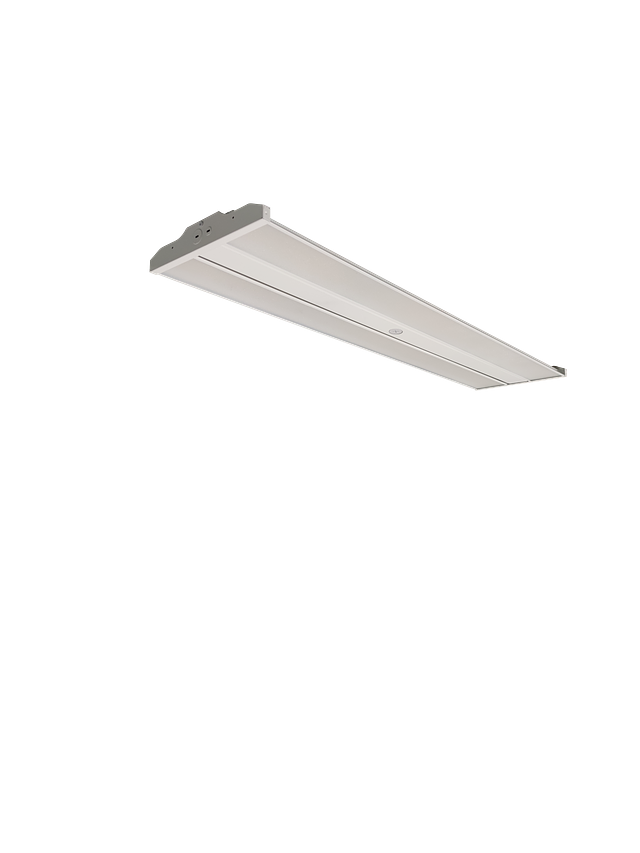

Sensor Ready Linear High Bay Lumen & Kelvin Selectable
Field selectable 4000k (neutral white) and 5000k (cool white) color temperatures. Long-life LEDs provide 134,000 hours of operation with at least 70% of initial lumen output (L70), and 40,000 hours with at least 90% of initial lumen output (L90). LED color maintenance < 0.003 chromaticity shift over the initial 6,000 hours of operation. Tri-lumen selectable delivers 12,000 to 60,000 nominal lumens
- cULus listed for damp locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).
- DLC 5.1 premium listed for medium distribution.
- Input transient surge protection = 6kV.
- Complies with FCC Part 15, class A.
- 5-year warranty on all electronics and housing.
- Chain-mount kit (includes v-hooks and 1-meter-long chain) are standard.
- Optional pendant mounting kit provides pendant attachment to ½” rigid conduit.
- Optional surface mounting kit provides attachment to solid surfaces.
- Optional cable mount kit provides luminaire suspension.
CCT
- 4000K
- 5000K
CRI
- 80 CRI
Dimming Protocol
- 0-10 V
- Lutron
- Step-Dimming
Efficacy
- 149 lm/w
- 150 lm/w
- 152 lm/w
- 153 lm/w
- 154 lm/w
- 155 lm/w
- 156 lm/w
- 157 lm/w
- 158 lm/w
- 159 lm/w
- 160 lm/w
- 162 lm/w
Lamp Life
- 40000 hrs
- 134000 hrs
Lamp Source
- LED
Listings
- cULus
Lumens
- 3402 Lm
- 3750 Lm
- 4468 Lm
- 6281 Lm
- 6560 Lm
- 7155 Lm
- 8283 Lm
- 9398 Lm
- 10840 Lm
- 11100 Lm
- 11161 Lm
- 12000 Lm
- 12007 Lm
- 12307 Lm
- 12526 Lm
- 13802 Lm
- 14249 Lm
- 14555 Lm
- 14661 Lm
- 15021 Lm
- 15071 Lm
- 15557 Lm
- 16247 Lm
- 18017 Lm
- 18085 Lm
- 18156 Lm
- 18421 Lm
- 18423 Lm
- 18477 Lm
- 21143 Lm
- 21353 Lm
- 21535 Lm
- 21585 Lm
- 23335 Lm
- 23902 Lm
- 24047 Lm
- 24049 Lm
- 24241 Lm
- 24269 Lm
- 24854 Lm
- 30037 Lm
- 30299 Lm
- 31718 Lm
- 35517 Lm
- 35540 Lm
- 35901 Lm
- 36076 Lm
- 36087 Lm
- 36491 Lm
- 37049 Lm
- 38465 Lm
- 48182 Lm
- 49009 Lm
- 53908 Lm
- 60000 Lm
- 60104 Lm
- 60446 Lm
- 61319 Lm
- 61323 Lm
Materials
- Polycarbonate
- Steel
Mounting
- Cable
- Pendant
- Surface
Ratings & Compliance
- DLC
- Damp
- FCC
Voltage
- 120 V
- 240 V
- 277 V
- 347 V
- 480 V
Warranty
- 5 yr
- Screw in sensor ready. Sensor and remote control sold separately. Remote control required to change factory sensor settings.
- Emergency driver option available.
- Medium distribution is standard with optional narrow or wide distribution lenses.
- Painted steel housing (stamped) and polycarbonate lenses are standard.
- Wire guards available
- Universal 120-277V AC voltage (50-60Hz) is standard. 347-480V achieved with step-down transformers is optional.
- 0-10vdc dimming drivers are standard.
- Power factor > 0.90.
- Total harmonic distortion < 20%.
- Color rendering index > 80.
