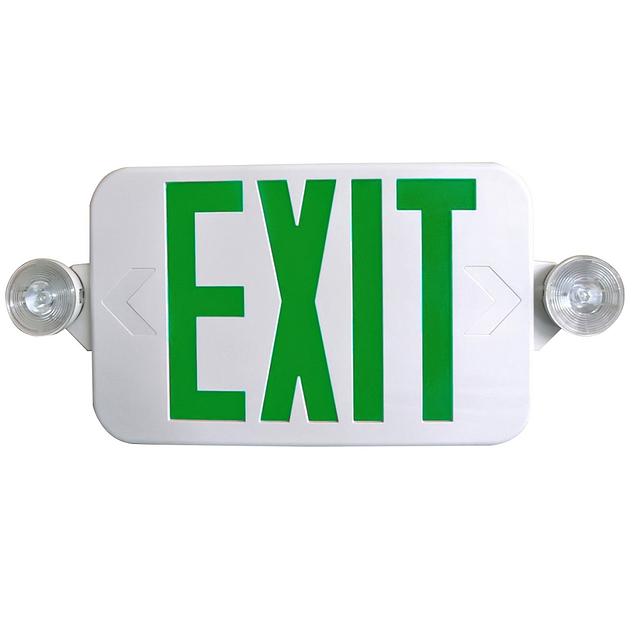

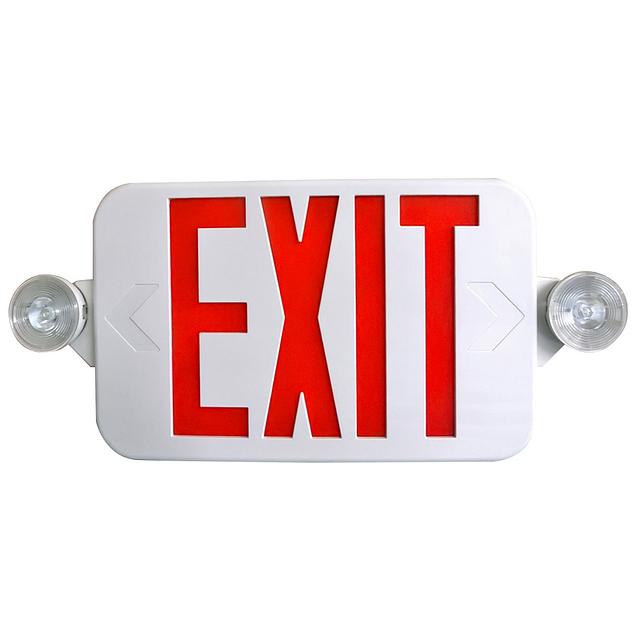

Low Profile All LED Exit & Emergency Combo
Thermoplastic low profile, rounded corners, 0.5W white LED per lamp head. Unique all inclusive lamp, reflector and lens assembly. Long-lasting, energy efficient Red or Green LED EXIT sign illumination.
- EZ-snap thermoplastic mounting canopy included – provides top or end mount.Â
- Universal K/O pattern on back plate for wall mount. SPV: UL Listed for special voltage option.Â
- HL: Provides increased center-to-center spacing (2.0W per head).Â
- SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes. Universal 120-277 voltage.Â
- RC: Remote capacity of up to 1.0 watts. Five year warranty on all electronics and housing. Battery prorated for five years.Â
- UL Listed for damp locations (0°C – 40°C).Â
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.Â
- Certified to CEC under Title 20 Regulations.
Color / Finish
- Black
- White
Lamp Source
- LED
Listings
- UL
Materials
- Thermoplastic
Mounting
- Wall
Ratings & Compliance
- Damp
- NFPA 101
- Title 20
Voltage
- 12 V
- 120 V
- 230 V
- 277 V
- Injection-molded, engineering grade, 5VA flame retardant, high-impact, thermoplastic in white or black finish
- Dual 120V/277 voltage standard. Optional dual 120V/230V available.Â
- Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).Â
- 3.6V long life, maintenance-free, rechargeable Ni-Cd battery.Â
- Internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination.Â
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Resources
- Injection-molded, engineering grade, 5VA flame retardant, high-impact, thermoplastic in white or black finish
- Dual 120V/277 voltage standard. Optional dual 120V/230V available.Â
- Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).Â
- 3.6V long life, maintenance-free, rechargeable Ni-Cd battery.Â
- Internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination.Â
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- EZ-snap thermoplastic mounting canopy included – provides top or end mount.Â
- Universal K/O pattern on back plate for wall mount. SPV: UL Listed for special voltage option.Â
- HL: Provides increased center-to-center spacing (2.0W per head).Â
- SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes. Universal 120-277 voltage.Â
- RC: Remote capacity of up to 1.0 watts. Five year warranty on all electronics and housing. Battery prorated for five years.Â
- UL Listed for damp locations (0°C – 40°C).Â
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.Â
- Certified to CEC under Title 20 Regulations.
