MPA
MPA-2.pngMPA

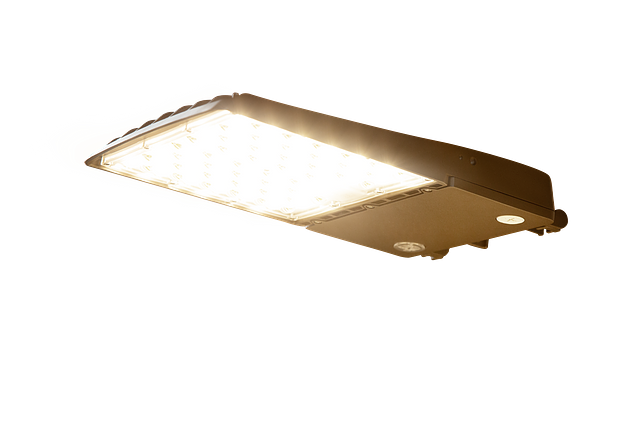

Multi-Purpose Area luminaire Lumens & Kelvin Selectable
- Polycarbonate lens. Die cast aluminum, Bronze housing
- Field selectable 3000K (warm white), 4000K (neutral white) and 5000K (cool white) color temperatures.
- MPA-24L provides a range of 12,267 to 25,747 nominal lumens.
- MPA-40L provides a range of 23,377 to 41,366 nominal lumens.
- Long-life LEDs provide 167,000 hours of operation with at least 70% of initial lumen output (L70), and 51,000 hours with at least 90% of initial lumen output (L90).**
- Screw in sensor ready. Sensor and remote control sold separately.
- Remote control required to change factory sensor settings.
- LED chromaticity based on < 6-step ANSI quadrangles.
- LED color maintenance < 0.0019 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
- Color Rendering Index > 70.
- cULus listed for wet locations.
- DLC premium listed
- Complies with FCC Part 15, class A.
- IP65 rated for ingress protection.
- IK08 rated for impact protection
Optional Universal Mount (Arm and Slip-fitter combination).
Optional Adjustable Arm Mounting kit.
Optional Slip-fitter Mounting kit.
Optional Yoke Mounting kit.
Optional Trunnion Mounting kit.
Optional Trunnion Mounting kit.
- Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
- Universal 120-277V or 277-480V AC voltage (50-60Hz) with 6-foot incoming power cords.
- 0-10V DC dimming drivers are standard.
- IES roadway distributions include type III & V.
- Watertight, compression-type electrical connectors.
- Input transient surge protection = 6kV.
- PF > 0.9; THD < 20%.
Resources
Optional Universal Mount (Arm and Slip-fitter combination).
Optional Adjustable Arm Mounting kit.
Optional Slip-fitter Mounting kit.
Optional Yoke Mounting kit.
Optional Trunnion Mounting kit.
Optional Trunnion Mounting kit.
- Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F) .
- Universal 120-277V or 277-480V AC voltage (50-60Hz) with 6-foot incoming power cords.
- 0-10V DC dimming drivers are standard.
- IES roadway distributions include type III & V.
- Watertight, compression-type electrical connectors.
- Input transient surge protection = 6kV.
- PF > 0.9; THD < 20%.
- cULus listed for wet locations.
- DLC premium listed
- Complies with FCC Part 15, class A.
- IP65 rated for ingress protection.
- IK08 rated for impact protection
