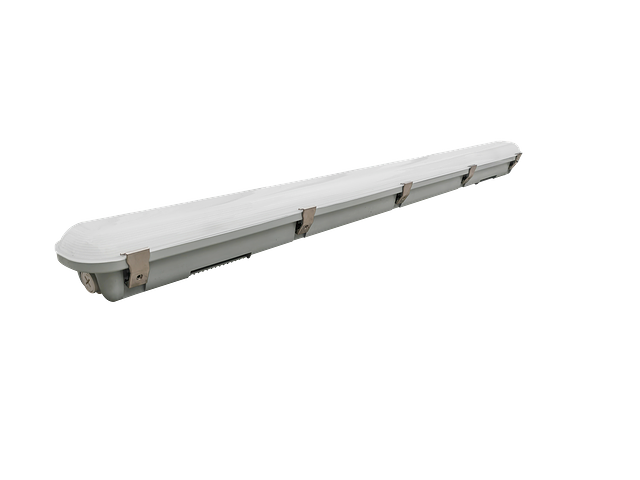

BVTBVT
Vapor Tight LED Strips
The BVT is a surface-mounted LED luminaire, which is designed to prevent the intrusion of moisture and dust. The BVT provides general ambient lighting in commercial and industrial settings, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability. The optional factory-installed Signtex Emergency Lighting Control option ensures full emergency code compliance at the lowest possible cost.
- Polycarbonate housing and lens.Â
- Stainless steel mounting bracket and lens clips are standard.Â
- Heavy duty wall-mount bracket provides for secure wall and ceiling installation.Â
- Easy installation in new construction or retrofit. cULus approved for wet locations (-20° C to 50° C / -4° F to 122° F).Â
- IP65 rated for ingress protection.Â
- DLC premium approved.Â
- Complies with FCC Part 15, Class A.Â
- Complies with IEEE C.62.41-1991, input transient protection (2.5kV).Â
- Complies with RoHS (Restriction on Hazardous Substances) requirements.Â
- Not suitable for use in car wash applications.
CRI
- 80 CRI
Dimming Protocol
- 0-10 V
Lamp Source
- LED
Listings
- cULus
Lumens
- 240 Lm
- 259 Lm
- 344 Lm
- 378 Lm
- 424 Lm
- 540 Lm
- 546 Lm
- 610 Lm
- 692 Lm
- 772 Lm
- 800 Lm
- 807 Lm
- 841 Lm
- 941 Lm
- 987 Lm
- 1075 Lm
- 1110 Lm
- 1122 Lm
- 1200 Lm
- 1242 Lm
- 1267 Lm
- 1313 Lm
- 1329 Lm
- 1356 Lm
- 1413 Lm
- 1505 Lm
- 1524 Lm
- 1557 Lm
- 1600 Lm
- 1701 Lm
- 1895 Lm
- 2013 Lm
- 2044 Lm
- 4244 Lm
- 4550 Lm
- 4585 Lm
- 4793 Lm
- 5200 Lm
- 5240 Lm
- 6469 Lm
- 6760 Lm
- 6812 Lm
Materials
- Polycarbonate
- Steel
Mounting
- Bracket
- Ceiling
- Surface
- Wall
Ratings & Compliance
- DLC
- FCC
- IP65
- RoHS
- Wet
Voltage
- 120 V
- 13 V
- 240 V
- 277 V
Warranty
- 5 yr
- Emergency lighting from 1,300 Lm to 1,820 Lm with adjustable Emergency Lighting Control (ELC), powered from a Signtex low-voltage central battery system.

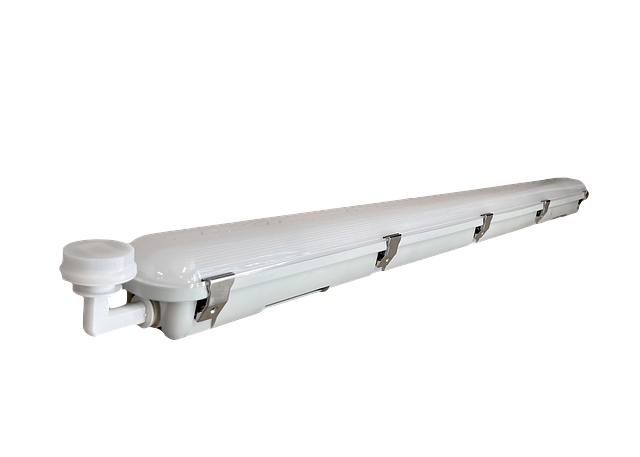

- Available with factory-installed UL Listed Emergency Lighting Control (ELC), for connection to a Signtex central battery, DC emergency power system.
- Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.Â
- Long-life LEDs provide at least 89,000 hours of operation with at least 70% of initial lumen output (L70).
- BVT-35 provides 4,244 luminaire lumens (125 LPW) at 3500k; 4,550 luminaire lumens (130 LPW) at 4000k; and 4,585 luminaire lumens (131 LPW) at 5000k.Â
- BVT-40 provides 4,793 luminaire lumens (120 LPW) at 3500k; 5,200 luminaire lumens (130 LPW) at 4000k; and 5,240 luminaire lumens (131 LPW) at 5000k.Â
- BVT-52 provides 6,469 luminaire lumens (127 LPW) at 3500k; 6,760 luminaire lumens (130 LPW) at 4000k; and 6,812 luminaire lumens (131 LPW) at 5000k.Â
- Uniform illumination with no visible LED pixelation.Â
- Universal 120-277 AC voltage (50-60Hz) is standard.Â
- 0-10vdc dimming capability is standard.Â
- Power factor > 0.90.Â
- Total harmonic distortion < 20%.Â
- Color rendering index > 80.
