PNL

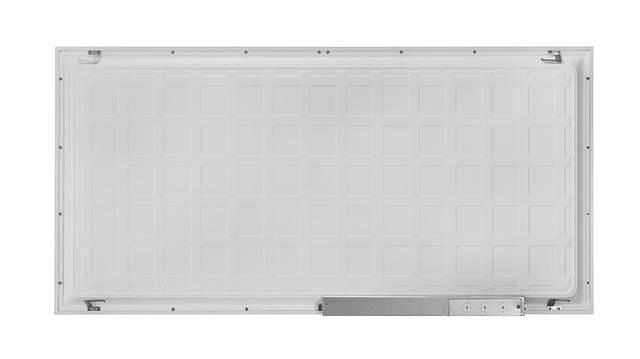

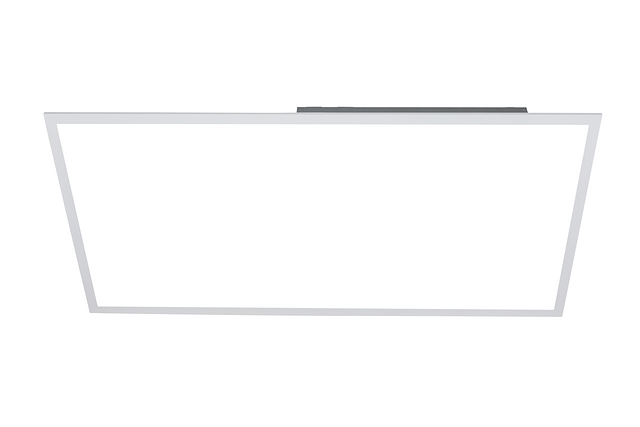

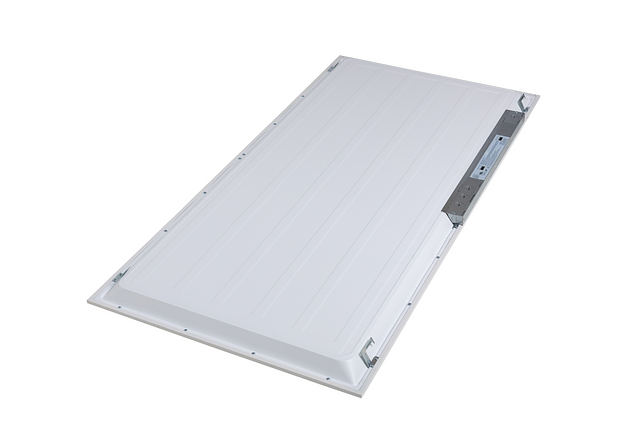

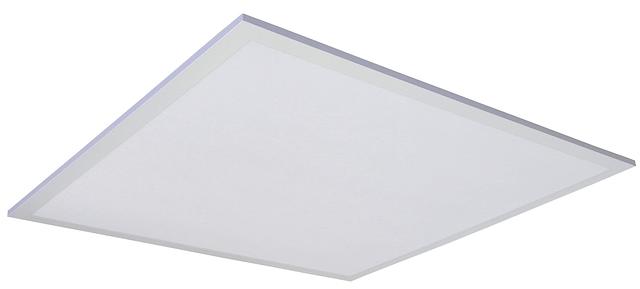

PNL2X4.pngPNL
Ultra-Thin, Uniform Backlit Panel with Optional ELC
The PNL Series utilizes back lighting technology to enable ultra-thin and ultra-light fixtures with uniforn lighting effect. The optional factory-installed Signtex Emergency Lighting Control option ensures full emergency code compliance at the lowest possible cost.
- Emergency lighting from 1,024 Lm to 5,200 Lm with adjustable Emergency Lighting Control (ELC), powered from a Signtex low-voltage central battery system.Â
- Available in 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.Â
- Long-life LEDs provide 144,000 hours of operation with at least 70% of initial lumen output (L70).
- L70 hours are IES TM-21-11 calculated hours.Â
- Optional Surface Mount Kits (LEDSMKT-22) and Flange Mounting Kits (FLANGEKIT22-ET) provide for installation on plaster or other hard ceilings.Â
- Optional Cable Mounting Kits (LEDPNL-CMK) provide additional security, as well as suspended mounting. cULus listed for wet locations in ambient temperatures from -40°C to 40°C (-40°F to 104°F).Â
- IP65 rated for ingress protection.Â
- Complies with FCC Part 15, class A (3L & 4L). Complies with FCC Part 15, class B (7L, 8L, & 11L). Complies with IEC61000-4-5, surge immunity protection (2kV).Â
- Complies with RoHS (Restriction on Hazardous Substances) requirements.
CRI
- 80 CRI
Dimming Protocol
- 0-10 V
- Lutron
Lamp Source
- LED
Listings
- cULus
Lumens
- 614 Lm
- 650 Lm
- 1300 Lm
- 1316 Lm
- 1690 Lm
- 2181 Lm
- 2457 Lm
- 2491 Lm
- 3284 Lm
- 3300 Lm
- 3323 Lm
- 3389 Lm
- 3964 Lm
- 4448 Lm
- 4500 Lm
- 4538 Lm
- 4576 Lm
- 5000 Lm
- 5015 Lm
- 5039 Lm
- 5152 Lm
- 5157 Lm
- 5247 Lm
Materials
- PMMA
- Steel
Mounting
- Bracket
- Cable
- Ceiling
- Flange
- Flush
- Grid
- Hanging
- Recessed
- Surface
- Suspended
Ratings & Compliance
- DLC
- Damp
- FCC
- IC
Voltage
- 120 V
- 240 V
- 277 V
Warranty
- 5 yr
- Aluminum frame and steel housing backplate. PMMA (polymethyl methacrylate) LED lenses for optimal light distribution, efficiency and longevity.Â
- Easy installation in new construction or retrofit.Â
- Standard earthquake clips provide secure installation in grid ceilings.Â
- Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. For mounting in plaster or other hard ceiling, see Mounting Kits.
- Provides 4,259 to 4,449 luminaire lumens, and 118 to 123 lumens per watt.Â
- Uniform illumination with no visible LED pixilation.Â
- Universal 120-277 AC voltage (50-60Hz) is standard.Â
- 0-10vdc dimming capability is standard.Â
- Power factor > 90.Â
- Total harmonic distortion < 20%.
- Color rendering index > 80.
