WPFWPF

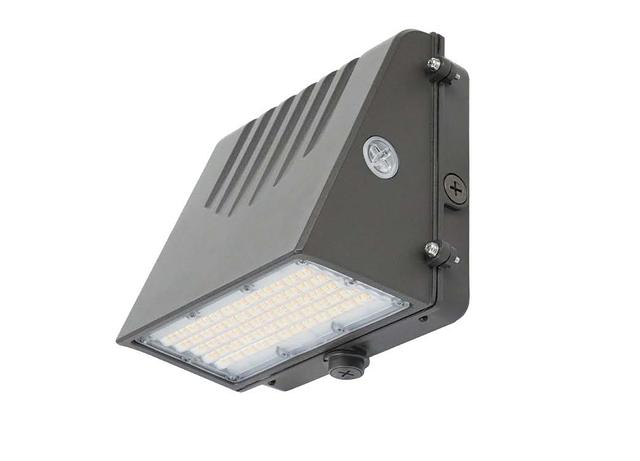

Wall Packs
High-quality outdoor area light. The optional factory-installed Signtex Emergency Lighting Control option ensures full emergency code compliance at the lowest possible cost.
- Cast aluminum housing with dark bronze, powder coat finish. Glass lens. Three ½” NPT threaded openings.
- Easy installation in new construction or retrofit applications.
- L70 and L90 hours are IES TM-21-11 calculated hours.
- cULus listed for wet locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F).
- IP65 rated for ingress protection.
- DLC 5.1 premium approved.
- Complies with FCC Part 15, class B. Complies with IEEE C.62.41-2002, surge immunity protection (2kV).
- Complies with RoHS (Restriction on Hazardous Substances) requirements.
CCT
- 4000K
- 5000K
Color / Finish
- Bronze
Controls Options
- Photocell
Dimming Protocol
- 0-10 V
Dimming Range
- 10%
Efficacy
- 121 lm/w
- 122 lm/w
- 129 lm/w
Lamp Life
- 36000 hrs
- 123000 hrs
Lamp Source
- LED
Listings
- cULus
Lumens
- 5 Lm
- 9 Lm
- 1220 Lm
- 1290 Lm
- 1700 Lm
- 1800 Lm
- 2440 Lm
- 2580 Lm
- 3660 Lm
- 3870 Lm
- 4880 Lm
- 5478 Lm
- 5570 Lm
- 8880 Lm
- 9053 Lm
Materials
- Aluminum
Mounting
- Wall
Ratings & Compliance
- DLC
- FCC
- IP65
- RoHS
- Wet
Voltage
- 120 V
- 240 V
- 277 V
- Emergency lighting from 1,290 Lm to 4,880 Lm with adjustable Emergency Lighting Control (ELC), powered from a Signtex low-voltage central battery system.
- Available in 4000k (neutral white) and 5000k (cool white) color temperatures.
- Long-life LEDs provide at least 70% of initial lumen output (L70) for > 123,000 hours of operation, and at least 90% of initial lumen output (L90) for > 36,000 hours of operation.
- Provides a range of 5,478 to 9,053 nominal lumens and 121 to 129 nominal lumens per watt (lm/W).
- 0-10vdc dimming drivers, which provide 10% continuous dimming are standard.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- LED chromaticity based on < 5-step ANSI quadrangles.
- LED color maintenance < 0.002 chromaticity shift over the initial 6,000 of operation.
- Power factor > 0.90.
- Total harmonic distortion < 20%.
- Color rendering index (Ra) > 70.
