VTK
VTK2.pngVTK

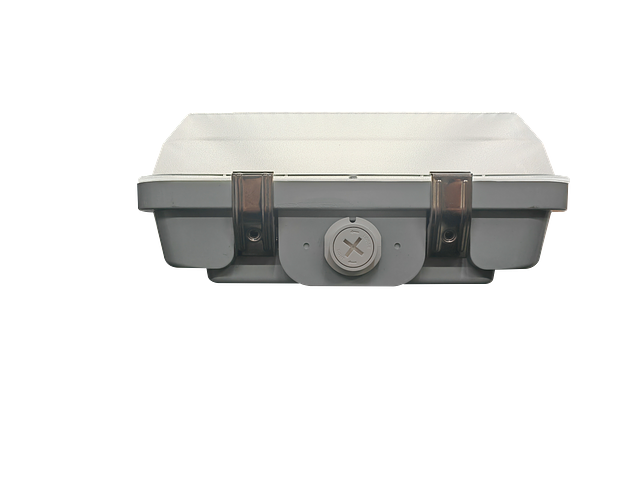

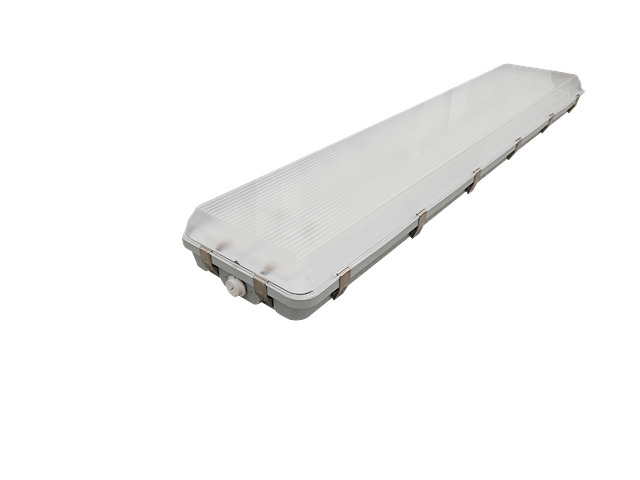

Vapor Tight High Lumen LED
The VTK is a surface-mounted LED luminaire, which is designed to prevent the intrusion of moisture and dust. The VTK provides general ambient lighting in commercial and industrial settings, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability. The optional factory-installed Signtex Emergency Lighting Control option ensures full emergency code compliance at the lowest possible cost.
- Polycarbonate housing and lens.
- Stainless steel mounting bracket and lens clips are standard.
- Heavy duty wall-mount bracket provides for secure wall and ceiling installation.
- Easy installation in new construction or retrofit. cULus approved for wet locations (-20° C to 50° C / -4° F to 122° F).
- IP65 rated for ingress protection.
- DLC premium approved.
- Complies with FCC Part 15, Class A.
- Complies with IEEE C.62.41-1991, input transient protection (2.5kV).
- Complies with RoHS (Restriction on Hazardous Substances) requirements.
- Easy installation in new construction or retrofit applications.
- Emergency lighting from 16,000 Lm to 21,000 Lm with adjustable Emergency Lighting Control (ELC), powered from a Signtex low-voltage central battery system.
- Available with factory-installed UL Listed Emergency Lighting Control (ELC), for connection to a Signtex central battery, DC emergency power system.
- Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.
- Long-life LEDs provide at least 89,000 hours of operation with at least 70% of initial lumen output (L70).
- Uniform illumination with no visible LED pixelation.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- 0-10vdc dimming capability is standard.
- Power factor > 0.90.
- Total harmonic distortion < 20%.
- Color rendering index > 80.
Resources
- Emergency lighting from 16,000 Lm to 21,000 Lm with adjustable Emergency Lighting Control (ELC), powered from a Signtex low-voltage central battery system.
- Available with factory-installed UL Listed Emergency Lighting Control (ELC), for connection to a Signtex central battery, DC emergency power system.
- Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.
- Long-life LEDs provide at least 89,000 hours of operation with at least 70% of initial lumen output (L70).
- Uniform illumination with no visible LED pixelation.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- 0-10vdc dimming capability is standard.
- Power factor > 0.90.
- Total harmonic distortion < 20%.
- Color rendering index > 80.
- Polycarbonate housing and lens.
- Stainless steel mounting bracket and lens clips are standard.
- Heavy duty wall-mount bracket provides for secure wall and ceiling installation.
- Easy installation in new construction or retrofit. cULus approved for wet locations (-20° C to 50° C / -4° F to 122° F).
- IP65 rated for ingress protection.
- DLC premium approved.
- Complies with FCC Part 15, Class A.
- Complies with IEEE C.62.41-1991, input transient protection (2.5kV).
- Complies with RoHS (Restriction on Hazardous Substances) requirements.
- Easy installation in new construction or retrofit applications.
