BLDBLD
Builder Universal Thermoplastic

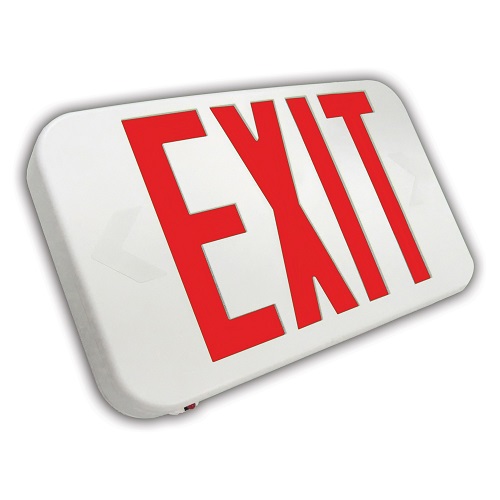

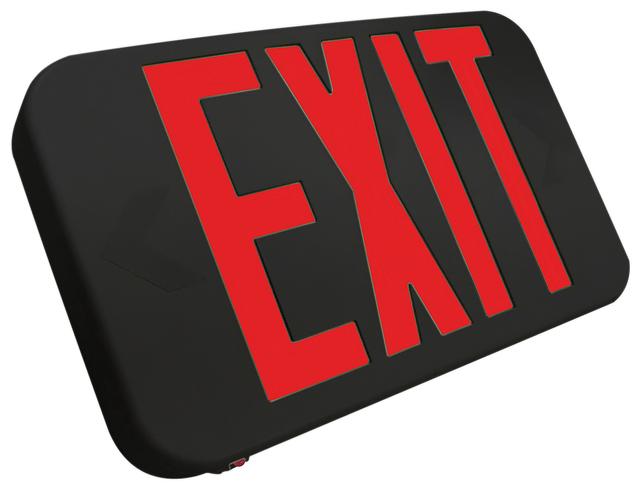

Attractive and easy to install. The BLD Series combines quality LED illumination with contemporary, soft corner styling to complement any application. Precision molded housing, backplate and mounting canopy constructed of impact-resistant, flame-retardant, UV stable thermoplastic resists denting, peeling, scratching and corrosion with NFPA approved field selectable chevrons. Available in white and black finishes.
- Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
- Universal Single/Double Face.
- SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
- 2C: Dual circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time.
- USA: Substantial transformation assembly in the U.S. complies with “Assembled in the USA” under the Buy American Act.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for damp locations (0°C – 50°C).
- Certified to CEC under Title 20 Regulations
Color / Finish
- Black
- White
Lamp Source
- LED
Listings
- UL
Materials
- Thermoplastic
Mounting
- Wall
Ratings & Compliance
- Buy America
- Damp
- NFPA 101
- Title 20
Voltage
- 120-277 V
- 24 V
- 48 V
- UL94 V-0 flame retardant thermoplastic housing with universal faceplates and mounting canopy.
- Easy to install, snap together construction.
- Constant current LED driver accepts universal 12V- 24VDC supply from the Signtex Central Battery System. Less than two watts power consumption.
- AC Operation
- Universal Input 120/277VAC Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only).
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- DC Operation
- 24VDC for Central Storage Battery systems.
- 60VDC for POE or DC power distribution systems.
Resources
- UL94 V-0 flame retardant thermoplastic housing with universal faceplates and mounting canopy.
- Easy to install, snap together construction.
- Constant current LED driver accepts universal 12V- 24VDC supply from the Signtex Central Battery System. Less than two watts power consumption.
- AC Operation
- Universal Input 120/277VAC Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only).
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- DC Operation
- 24VDC for Central Storage Battery systems.
- 60VDC for POE or DC power distribution systems.
- Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
- Universal Single/Double Face.
- SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
- 2C: Dual circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time.
- USA: Substantial transformation assembly in the U.S. complies with “Assembled in the USA” under the Buy American Act.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for damp locations (0°C – 50°C).
- Certified to CEC under Title 20 Regulations
Color / Finish
- Black
- White
Lamp Source
- LED
Listings
- UL
Materials
- Thermoplastic
Mounting
- Wall
Ratings & Compliance
- Buy America
- Damp
- NFPA 101
- Title 20
Voltage
- 120-277 V
- 24 V
- 48 V
