OWL

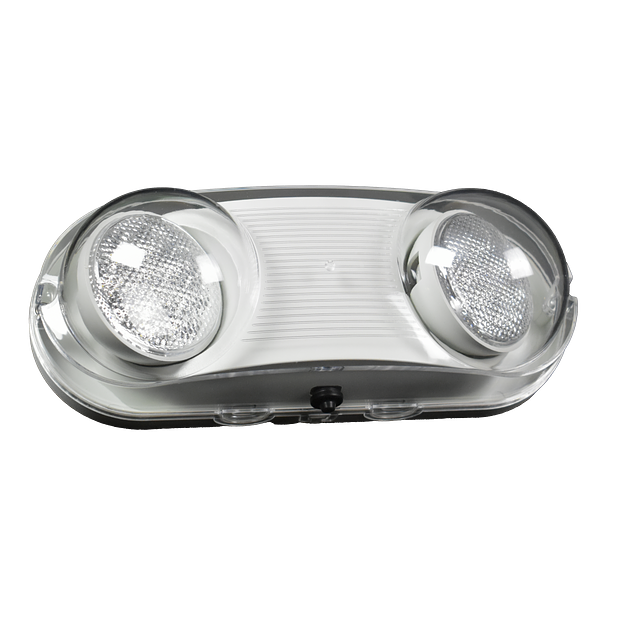

OWLBBW_tilted up.png

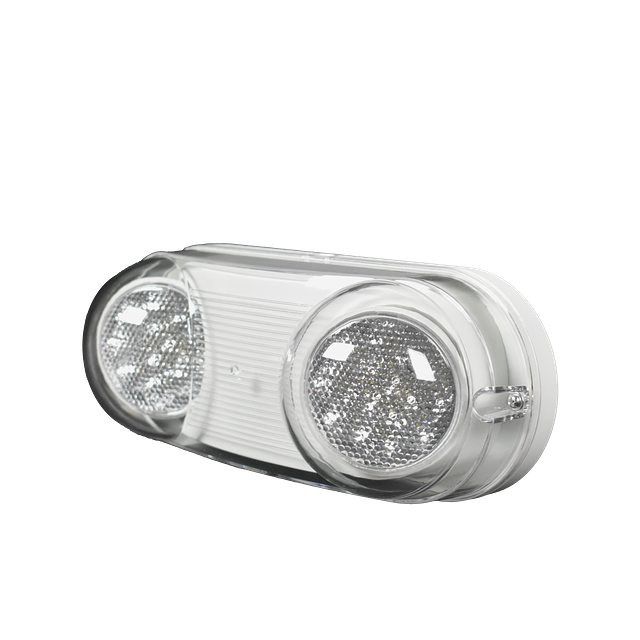

OWLBBW_left facing angle.pngOWL
Thermoplastic Wet Location LED Emergency Unit
- Two fully adjustable semi-recessed, round lamp heads for optimal light distribution.
- Provides up to 20-ft center-to-center spacing with 3-ft path of egress at 7.5-ft mounting height.
- 1.2 watt (12 LEDs x 0.10 watts) per head.
- Spacing: 17-ft center-to-center spacing with 3-ft path of egress at 7.5-ft mounting height.
- Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white finish.
- Universal knockout pattern on back plate for surface mount.
- Suitable for wall or ceiling mount.
- Dual 120/277 voltage.
- Unique LED indicator light alerts occupant on battery condition (Red-normal, OFF-check battery).
- Charge rate/power "ON" LED indicator light and push-to test switch for mandated code compliance testing.
- 3.6V 700mAH long-life, maintenance-free, rechargeable Ni-Cd battery.
- Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Resources
- Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white finish.
- Universal knockout pattern on back plate for surface mount.
- Suitable for wall or ceiling mount.
- Dual 120/277 voltage.
- Unique LED indicator light alerts occupant on battery condition (Red-normal, OFF-check battery).
- Charge rate/power "ON" LED indicator light and push-to test switch for mandated code compliance testing.
- 3.6V 700mAH long-life, maintenance-free, rechargeable Ni-Cd battery.
- Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
