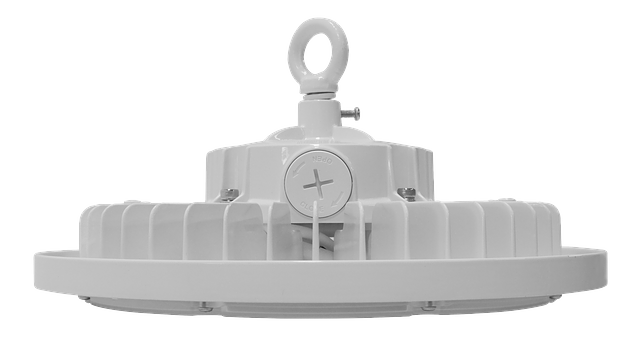

Product-Images-Side-View-HBRSR-221816L-4K5K-WHT-05-Sept-2023.pngHBR
High Bay Round Sensor Ready
- Field selectable 4000k (neutral white) and 5000k (cool white)color temperatures.
- Tri-lumen selectable delivers 16,000 to 35,000 nominal lumens.
- Screw in sensor ready. Sensor and remote control sold separately.
- Remote control required to change factory sensor settings.
- Long-life LEDs provide 146,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90).
- LED color maintenance < 0.003 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
- Color rendering index > 80.
- cULus listed for wet locations.
- DLC Premium listed.
- Complies with FCC part 15, class A.
- IP65 rated for ingress protection.
- Ik09 rated for Lens impact protection
- Polycarbonate lens.
- Suspension from eyebolt (included) is standard.
- Ceiling-mounted installation using optional yoke mounting bracket, provides up to 180° of adjustability.
- Two ways to mount luminaire to electrical conduit: Attach conduit (1/2” NPS) to optional yoke mounting bracket and Optional pendant snap hook (for use with 3/4” NPS).
- Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F).
- Universal 120-277V AC voltage (50-60Hz) is standard.
- Universal 277-480V AC voltage (50-60Hz) in model UNC.
- 0-10VDC dimming drivers are standard.
- Incoming AC power cord = 6’. Incoming dimming cord = 6’.
- Watertight, compression-type electrical connectors.
- Input transient surge protection = 6kV.
- Power factor > 0.90.
- Total harmonic distortion < 20%
Resources
- Polycarbonate lens.
- Suspension from eyebolt (included) is standard.
- Ceiling-mounted installation using optional yoke mounting bracket, provides up to 180° of adjustability.
- Two ways to mount luminaire to electrical conduit: Attach conduit (1/2” NPS) to optional yoke mounting bracket and Optional pendant snap hook (for use with 3/4” NPS).
- Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F).
- Universal 120-277V AC voltage (50-60Hz) is standard.
- Universal 277-480V AC voltage (50-60Hz) in model UNC.
- 0-10VDC dimming drivers are standard.
- Incoming AC power cord = 6’. Incoming dimming cord = 6’.
- Watertight, compression-type electrical connectors.
- Input transient surge protection = 6kV.
- Power factor > 0.90.
- Total harmonic distortion < 20%
- cULus listed for wet locations.
- DLC Premium listed.
- Complies with FCC part 15, class A.
- IP65 rated for ingress protection.
- Ik09 rated for Lens impact protection
