SLLSLL

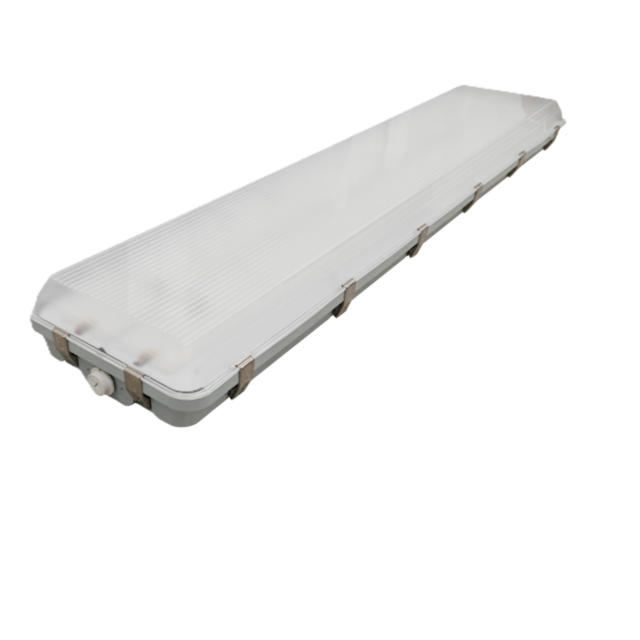

Lumen and Kelvin Field Selectable Strip Light
Field selectable 3500k (warm/neutral white), 4000k (neutral white), and 5000k (cool white) color temperatures. Long-life LEDs provide 196,000 hours of operation with at least 70% of initial lumen output (L70), and 60,000 hours with at least 90% of initial lumen output (L90). LED chromaticity based on < 4-step ANSI quadrangles. LED color maintenance < 0.002 chromaticity shift over the initial 6,000 hours of operation.
- cULus approved for damp locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F).Â
- DLC approved.Â
- Complies with FCC Part 15, Class A.Â
- Complies with IEEE C.62.41-1991, Class A input transient surge protection (1.0kV).Â
- 5-year warranty of all electronics and housing.
CRI
- 80 CRI
Dimming Protocol
- 0-10 V
- Lutron
- Step-Dimming
Lamp Source
- LED
Listings
- cULus
Lumens
- 470 Lm
- 570 Lm
- 650 Lm
- 1002 Lm
- 1390 Lm
- 1653 Lm
- 1780 Lm
- 1877 Lm
- 1927 Lm
- 3009 Lm
- 3631 Lm
- 3690 Lm
- 3700 Lm
- 3722 Lm
- 4024 Lm
- 4317 Lm
- 4336 Lm
- 4338 Lm
- 4389 Lm
- 4876 Lm
- 4908 Lm
- 5000 Lm
- 5200 Lm
- 5203 Lm
- 7100 Lm
- 7135 Lm
- 7251 Lm
- 7314 Lm
- 8483 Lm
- 8520 Lm
- 8624 Lm
- 9553 Lm
- 9619 Lm
Materials
- PMMA
- Steel
Ratings & Compliance
- DLC
- Damp
- FCC
Voltage
- 120 V
- 240 V
- 277 V
Warranty
- 5 yr
- Steel housing and PMMA lens.Â
- Optional emergency drivers and occupancy sensors are available.Â
- Easy installation in new construction or retrofit.
- SL-4FT-5L-LKFS provides a range of 3,700 to 5,200 nominal lumens and 138 to 152 lumens per watt (LPW).Â
- SL-8FT-10L-LKFS provides a range of 7,100 to 10,100 nominal lumens and 132 to 149 lumens per watt (LPW).
- Universal 120-277 AC voltage (50-60Hz) is standard.
- 0-10vdc dimming drivers are standard.Â
- Power factor > 0.90.Â
- Total harmonic distortion < 20%.Â
- Color rendering index > 80.
Resources
- Steel housing and PMMA lens.Â
- Optional emergency drivers and occupancy sensors are available.Â
- Easy installation in new construction or retrofit.
- SL-4FT-5L-LKFS provides a range of 3,700 to 5,200 nominal lumens and 138 to 152 lumens per watt (LPW).Â
- SL-8FT-10L-LKFS provides a range of 7,100 to 10,100 nominal lumens and 132 to 149 lumens per watt (LPW).
- Universal 120-277 AC voltage (50-60Hz) is standard.
- 0-10vdc dimming drivers are standard.Â
- Power factor > 0.90.Â
- Total harmonic distortion < 20%.Â
- Color rendering index > 80.
- cULus approved for damp locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F).Â
- DLC approved.Â
- Complies with FCC Part 15, Class A.Â
- Complies with IEEE C.62.41-1991, Class A input transient surge protection (1.0kV).Â
- 5-year warranty of all electronics and housing.
