NYRNYR

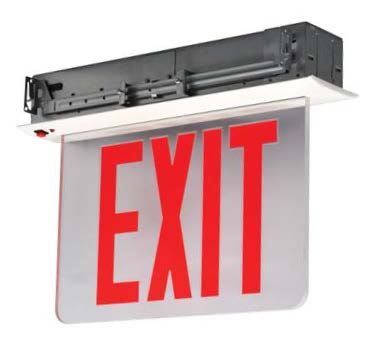

New York City Approved Recessed Aluminum LED Edgelit Exit Sign
Ultra bright, energy efficient, long life Red LED. UV-stabilized, ultra-clear acrylic edgelit panel provides consistent, uniform illumination. Double face utilizes factory installed silver or white mylar background panel. New York City compliant 8” EXIT letters.
- Compatible with drywall or drop ceiling mount installations. Bar hangers included. Wall mount capability optional.
- SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
- SPV: UL Listed for special voltage option.
- WM: Allows for the unit to be wall recessed mounted.
- Five year warranty on all electronics and housing.
- Battery prorated for five years.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for damp locations (0°C – 50°C).
Color / Finish
- Black
- White
Lamp Source
- LED
Listings
- UL
Materials
- Acrylic
- Aluminum
Mounting
- Ceiling
- Recessed
- Wall
Ratings & Compliance
- Damp
- Dry
- NFPA 101
Voltage
- 120 V
- 208 V
- 240 V
- 277 V
- Premium-grade, extruded aluminum housing.
- Extruded aluminum trim assembly is easily detachable from below, providing accessibility for service or maintenance.
- Available in black or white powder-coated finishes.
- Self-adhesive chevron appliques and guide template provided for directional indication.
- Dual 120/277 voltage standard. Optional multi-tap 208/220/240 voltage available.
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 4.8V Long life, maintenance-free, rechargeable NiCd battery.
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
