NYKNYK

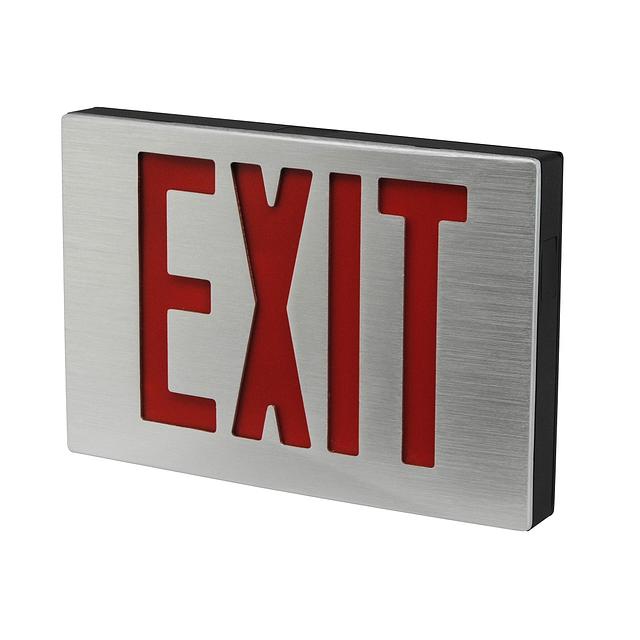

Ultra-bright, efficient LEDs with NYC-compliant 8” EXIT letters
Ultra bright, energy efficient, long life Red or Green LEDs. New York City compliant 8” EXIT letters.
- Aluminum mounting canopy included for top or end mount.
- Universal knockout pattern on back plate for wall mount.
- DG: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
- 2C: Dual circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for damp locations (0°C – 50°C).
- Certified to CEC under Title 20 Regulations.
Color / Finish
- Black
- Red
- White
Lamp Source
- LED
Listings
- UL
Materials
- Aluminum
Mounting
- Wall
Ratings & Compliance
- Damp
- NFPA 101
Voltage
- 120 V
- 277 V
- Premium-grade, die-cast aluminum housing (also available in optional black or white powder-coated finishes).
- Field selectable knockout Chevron directional indicators.
- Unique design allows double face conversion in the field.
- Quick-snap face plate closure.
- AC Operation
- Universal Input 120/277VAC Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only).
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- DC Operation
- 24VDC for Central Storage Battery systems.
- 60VDC for POE or DC power distribution systems.
Resources
- Premium-grade, die-cast aluminum housing (also available in optional black or white powder-coated finishes).
- Field selectable knockout Chevron directional indicators.
- Unique design allows double face conversion in the field.
- Quick-snap face plate closure.
- AC Operation
- Universal Input 120/277VAC Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only).
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- DC Operation
- 24VDC for Central Storage Battery systems.
- 60VDC for POE or DC power distribution systems.
- Aluminum mounting canopy included for top or end mount.
- Universal knockout pattern on back plate for wall mount.
- DG: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
- 2C: Dual circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for damp locations (0°C – 50°C).
- Certified to CEC under Title 20 Regulations.
Color / Finish
- Black
- Red
- White
Lamp Source
- LED
Listings
- UL
Materials
- Aluminum
Mounting
- Wall
Ratings & Compliance
- Damp
- NFPA 101
Voltage
- 120 V
- 277 V
