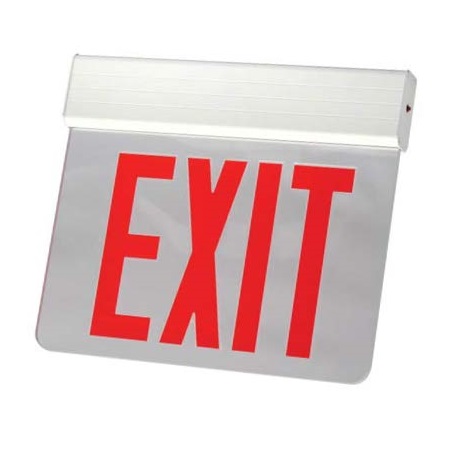

New York City Compliant Edgelit Aluminum Exit Sign
Ultra bright, energy efficient, long life Red LEDs. UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination. Double face utilizes factory installed silver or white mylar background panel. New York City compliant 8” EXIT letters.
- Aluminum mounting canopy included for top, end or back mount.
- Available in optional black or white powder-coated finishes.
- SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
- SPV: UL Listed for 208/220/240 Volt, 50/60Hz.
- Five year warranty on all electronics and housing. Battery prorated for five years.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for damp locations (0°C – 50°C). Certified to CEC under Title 20 Regulations.
Color / Finish
- Black
- White
Lamp Source
- LED
Listings
- UL
Materials
- Acrylic
- Aluminum
Ratings & Compliance
- Damp
- NFPA 101
- Title 20
Voltage
- 120 V
- 208 V
- 240 V
- 277 V
- Premium-grade, extruded aluminum housing (also available in black or white powder-coated finishes).
- Self-adhesive Chevron appliques and guide template provided for directional indication.
- Dual 120/277 voltage standard.
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only).
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
