RMR
RMR16-65-125_MAR-2024.pngRMR

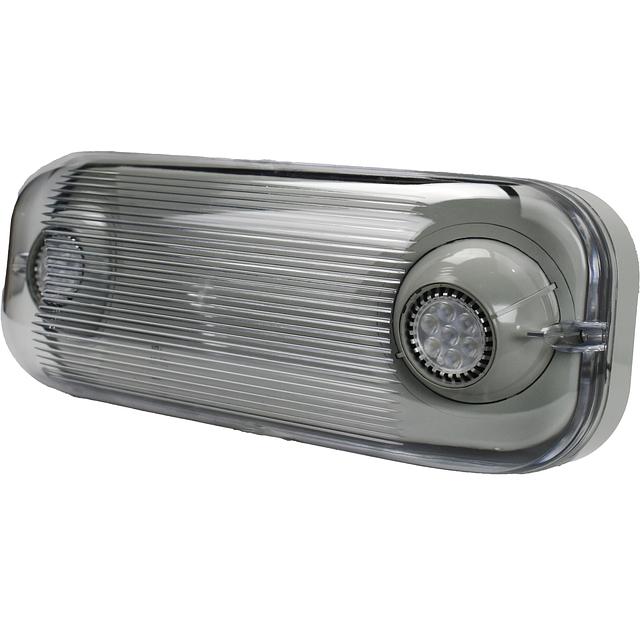

MR-16 Wet Location Semi-Recessed Polycarbonate Emergency Unit
Two fully adjustable, semi-recessed ultra bright, 7.2 watt MR-16 halogen lamp heads standard. High-performace MR-16 halogen lamps with smooth metalized reflector and glass lens for optimal light distribution.
- Universal knockout pattern on back plate for wall mount. Snaps into place making internal electrical connections.
- HTR: Optional internal heater for cold temperature (-9°C – 40°C) applications.
- CW: Optional internal heater and battery blanket for extreme cold temperature applications, (-25°C – 50°C MR-16 halogen) (-25°C – 40°C LED).
- USA: Substantial transformation assembly in the U.S. complies with “Assembled in the USA” under the Buy American Act.
- LED: 3.3W high performance MR-16 base LED lamps for increased center-to-center spacing.
- CEC: Certified to CEC under Title 20 Regulations
- PLED: 5.0W high performance MR-16 base LED maps for premium center-to-center spacing
- Five year warranty on all electronics and housing. Battery prorated for five years.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for damp locations (0°C – 50°C).
Color / Finish
- Black
- Gray
Lamp Source
- Halogen
- LED
- MR-16
Listings
- UL
Materials
- Metal
- Polycarbonate
- Thermoplastic
Mounting
- Cove
- Wall
Ratings & Compliance
- Buy America
- Damp
- NFPA 101
- Title 20
- Wet
Voltage
- 120-277 V
- 24 V
- 48 V
- Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in gray or black finish.
- Fully gasketed clear polycarbonate cover offers protection against wet, non-hazardous dust, corrosive atmospheres and to water spray or splashing water locations.
- Dual 120/277 voltage.
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- LVD (low voltage disconnect) prevents battery from deep discharge.
- 6V maintenance-free, rechargabe sealed lead acid battery. Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Resources
- Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in gray or black finish.
- Fully gasketed clear polycarbonate cover offers protection against wet, non-hazardous dust, corrosive atmospheres and to water spray or splashing water locations.
- Dual 120/277 voltage.
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- LVD (low voltage disconnect) prevents battery from deep discharge.
- 6V maintenance-free, rechargabe sealed lead acid battery. Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- Universal knockout pattern on back plate for wall mount. Snaps into place making internal electrical connections.
- HTR: Optional internal heater for cold temperature (-9°C – 40°C) applications.
- CW: Optional internal heater and battery blanket for extreme cold temperature applications, (-25°C – 50°C MR-16 halogen) (-25°C – 40°C LED).
- USA: Substantial transformation assembly in the U.S. complies with “Assembled in the USA” under the Buy American Act.
- LED: 3.3W high performance MR-16 base LED lamps for increased center-to-center spacing.
- CEC: Certified to CEC under Title 20 Regulations
- PLED: 5.0W high performance MR-16 base LED maps for premium center-to-center spacing
- Five year warranty on all electronics and housing. Battery prorated for five years.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for damp locations (0°C – 50°C).
Color / Finish
- Black
- Gray
Lamp Source
- Halogen
- LED
- MR-16
Listings
- UL
Materials
- Metal
- Polycarbonate
- Thermoplastic
Mounting
- Cove
- Wall
Ratings & Compliance
- Buy America
- Damp
- NFPA 101
- Title 20
- Wet
Voltage
- 120-277 V
- 24 V
- 48 V
