ELR
ELR (3).jpeg
A9kxcfs_1v6fzox_c0c.jpgELR
RECESSED ARCHITECTURAL EMERGENCY LIGHT

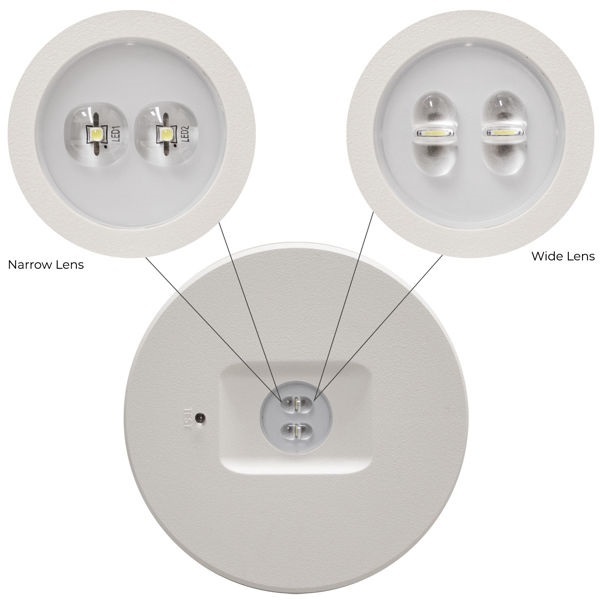

ELR architectural recessed mount LED light is the perfect addition to your lighting needs. Unique design that comes with 2 different lens type: Narrow Lens and Wide Lens. Makes it the perfect emergency light for any types of corridors or open spaces.

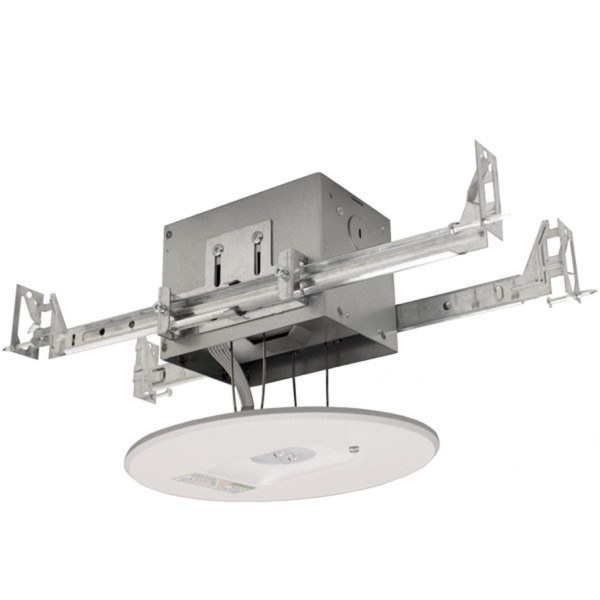

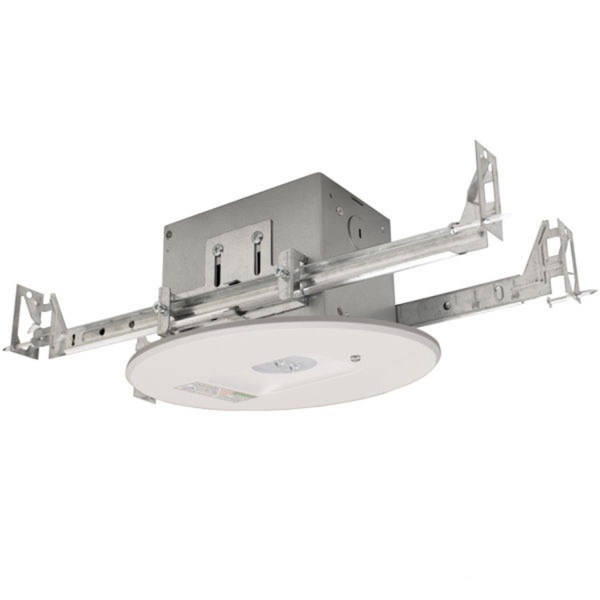

The ELR is UL 924, NEC, OSHA and NFPA 101 Life Safety Code approved. Features a 20-gauge steel back box with junction box and polycarbonate trim plate, Makes it a convenient and inconspicuous unit. It is designed to work with drop ceiling applications (battery is accessible from top of unit only).
- Listed for damp location.
- Ultra bright white LEDs CCT 5000k.
- For use in Drop Ceiling Applications.
- LED indicator light with push-to-test switch.
- 20-gauge steel back box with junction box.
- Injection-molded, engineering grade, high-impact resistant,
- thermoplastic Trim plate in white finish.
- Friendly configuration design for quick and easy installation.
- Self-Test/Self-Diagnostic operation is standard.
- Universal voltage input 120-277 VAC 50/60Hz operation.
- High efficiency charger and maintenance-free
- 6.2V 3200mAh LiFePO4 battery.
- Over 50,000 hour lamp life in normal use
- Standard Operating Temperature 10°C to 50°C
Resources
- Listed for damp location.
- Ultra bright white LEDs CCT 5000k.
- For use in Drop Ceiling Applications.
- LED indicator light with push-to-test switch.
- 20-gauge steel back box with junction box.
- Injection-molded, engineering grade, high-impact resistant,
- thermoplastic Trim plate in white finish.
- Friendly configuration design for quick and easy installation.
- Self-Test/Self-Diagnostic operation is standard.
- Universal voltage input 120-277 VAC 50/60Hz operation.
- High efficiency charger and maintenance-free
- 6.2V 3200mAh LiFePO4 battery.
- Over 50,000 hour lamp life in normal use
- Standard Operating Temperature 10°C to 50°C
