CAE
CAE (2).jpg
CAE.jpgCAE

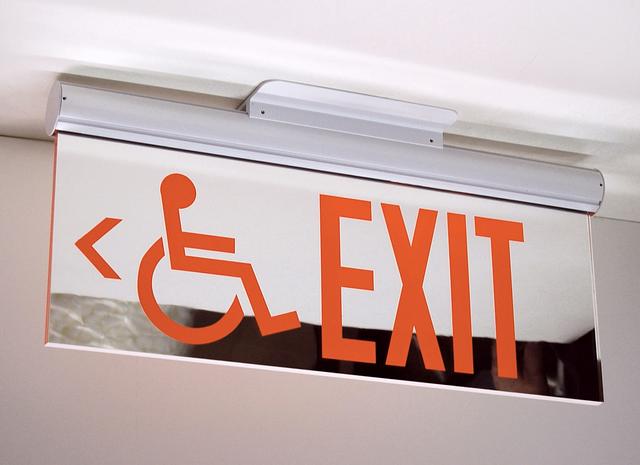

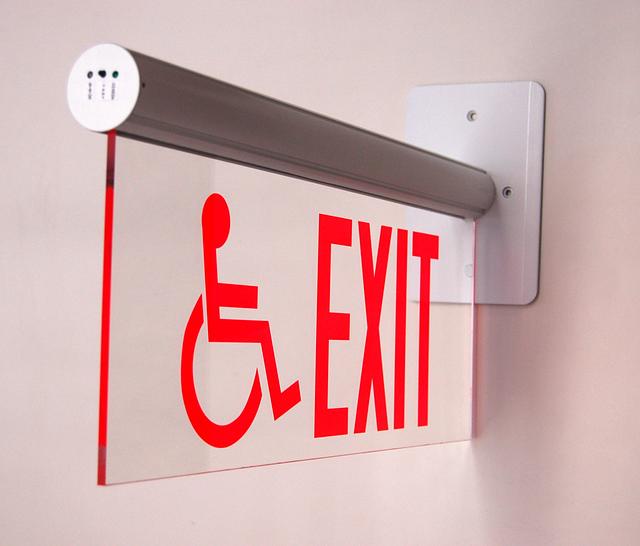

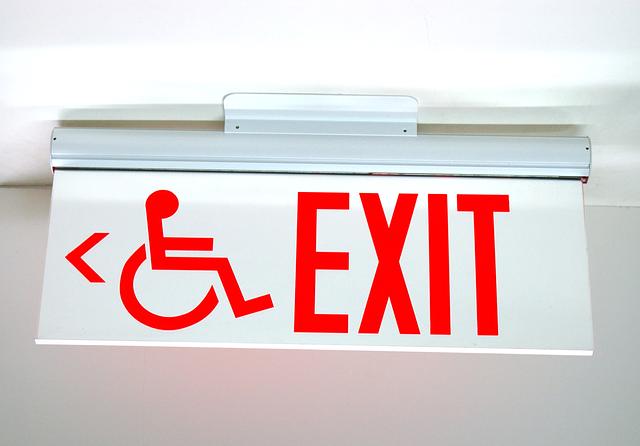

Connecticut & Massachusetts Approved Crystal Accessible Edge Lit Exit
Edge-Lit Exit
- Manufactured and tested to UL Standard 924.
- Conforms to NFPA Life Safety Code 101, UBC and NEC.
Color / Finish
- Black
- Red
- White
Lamp Source
- LED
Listings
- UL
Materials
- Acrylic
- Aluminum
Mounting
- Ceiling
- Pendant
- Recessed
- Surface
- Wall
Ratings & Compliance
- Buy America
- Damp
- Exterior
- NFPA 101
- Extruded aluminum LED lamp housing mounts to a form fitting canopy in solid aluminum that contains a “cam lock” device, which is field adjustable for wall or ceiling mount.
- Standard finishes: satin white and brushed aluminum.
- Diamond polished acrylic lenses for optimum light transmission, exterior quality and high brightness.
- The complete power supply module wit optional NICAD battery pack is sealed within a phenolic plastic enclosure, which fits inside a standard 4″ square deep J-box.
- Universal 120/ 277 VAC input for standard battery or AC unit, or 24 VDC input for remote configuration.
- Power supply is surge and spike protected, with a low voltage disconnect.
- AC and DC wiring is quickly attached with plug connectors.
Resources
- Extruded aluminum LED lamp housing mounts to a form fitting canopy in solid aluminum that contains a “cam lock” device, which is field adjustable for wall or ceiling mount.
- Standard finishes: satin white and brushed aluminum.
- Diamond polished acrylic lenses for optimum light transmission, exterior quality and high brightness.
- The complete power supply module wit optional NICAD battery pack is sealed within a phenolic plastic enclosure, which fits inside a standard 4″ square deep J-box.
- Universal 120/ 277 VAC input for standard battery or AC unit, or 24 VDC input for remote configuration.
- Power supply is surge and spike protected, with a low voltage disconnect.
- AC and DC wiring is quickly attached with plug connectors.
- Manufactured and tested to UL Standard 924.
- Conforms to NFPA Life Safety Code 101, UBC and NEC.
Color / Finish
- Black
- Red
- White
Lamp Source
- LED
Listings
- UL
Materials
- Acrylic
- Aluminum
Mounting
- Ceiling
- Pendant
- Recessed
- Surface
- Wall
Ratings & Compliance
- Buy America
- Damp
- Exterior
- NFPA 101
