CRS

Crystal Surface Mount

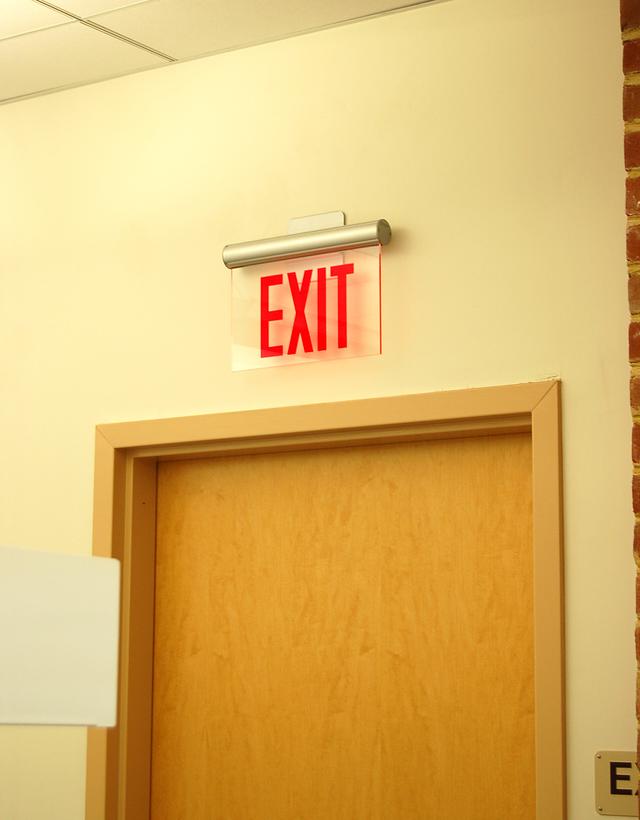

Universal Wall or Ceiling, compact aluminum housing, optional inverted mount. The power supply and battery are installed in a standard recessed J-box, resulting in the most compact design for any surface-mount edge lit sign.

View Spec Sheet Talk To An Agent

Specsheets

Series-CRS-21.pdf

Optional battery diagnostics available for all models.
Remote versions of all models are available, to operate from Signtex Central Battery Systems.
Manufactured and tested to UL Standard 924.
Conforms to NFPA Life Safety Code 101, UBC and NE

Color / Finish

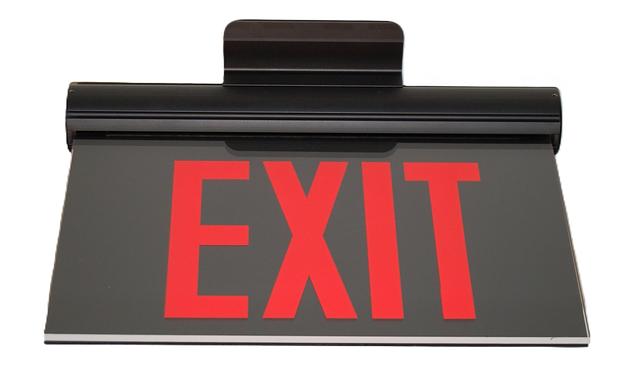

Bronze
Silver
White

Lamp Source

Listings

Materials

Acrylic
Aluminum

Mounting

Ceiling
Pendant
Surface
Wall

Ratings & Compliance

Buy America
Damp
Exterior
NFPA 101

Voltage

48 V

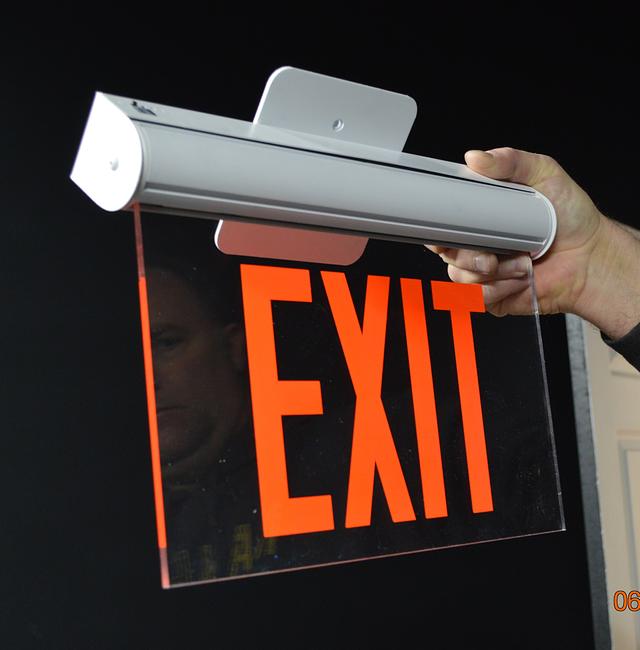

The extruded aluminum housing and canopy are fitted with a unique “cam-lock” mount which allows universal wall or ceiling mount without special tools or parts.
Exceptional brightness and uniformity is achieved with the use of diamond polished lenses, very high quality LEDs and balanced optics.
Only four LEDs are used per face, resulting in the lowest power consumption of any edge-lit sign.
Solid extruded aluminum trim plate, with satin anodized or baked enamel finishes.

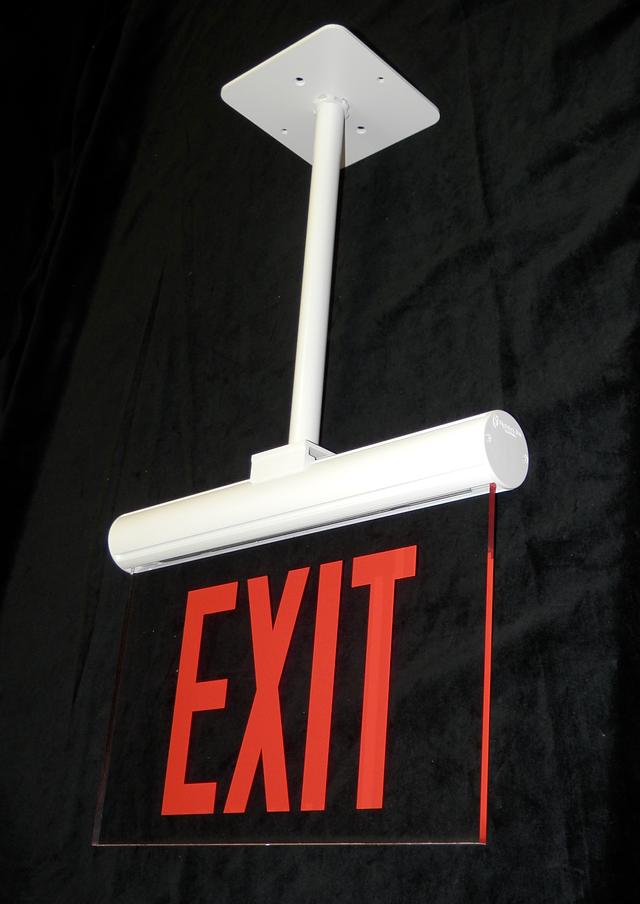

Multiple mount options are available, including single or double pendants, special graphics and illumination colors and other items.
Custom metal anodizing, paint finishes and custom graphics available, as well as custom illumination colors for specialty signs.

Universal 120/ 277 VAC input for standard battery or AC models.
Remote models may be connected to one of the following:
- Series CBL
- CBM UNIVERSAL CENTRAL BATTERY SYSTEM DC Power Supply or POE.
Power supply is surge and spike protected, with a low voltage disconnect.
The complete power supply module wit optional NICAD battery pack is sealed within a phenolic plastic enclosure, which fits inside a standard 4" square deep J- box. AC and DC wiring is quickly attached with plug connectors.
