LCM

Universal Central Battery

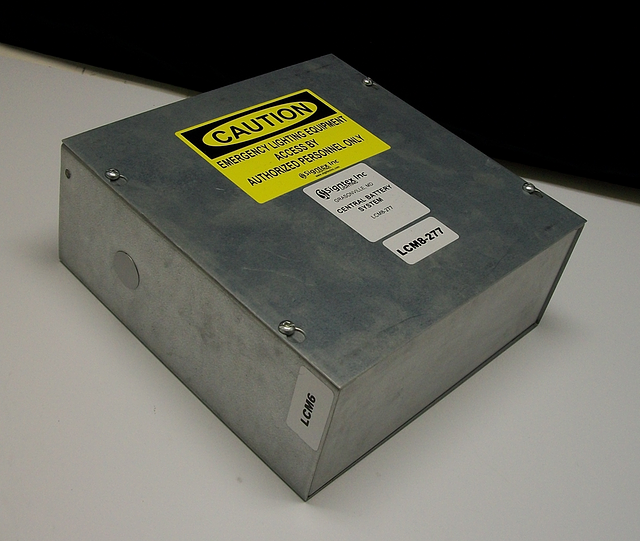

The LCM panel monitors the status of up to nine (9) branch circuits supplying general lighting for egress pathways, and is connected to one or more CBS panels supplying emergency lighting in the same areas, via a 12V normally ON signal.

View Spec Sheet Talk To An Agent

Specsheets

Series-LCM-11.pdf

The LCM panel monitors the status of up to nine (9) branch circuits supplying general lighting for egress pathways, and is connected to one or more CBS panels supplying emergency lighting in the same areas, via a 12V normally ON signal.
If any monitored circuit breaker is opened or other circuit failure occurs, the 12V signal will turn OFF and the CBS will immediately activate emergency lighting in the area.
Guaranteed minimum LED life to 70% output in 50,000 hrs provides lowest life cycle costs over a building lifetime.
LED driver circuits are equipped with two independent power inputs, allowing both emergency and optional night (normal-on) lighting operation.
More than two lamps are supplied in every fixture, driven via parallel circuits with independent current controllers.
This design ensures compliance with NEC Code for emergency lighting, ie failure of any single LED shall not cause failure of any other LED.
LED exit signs have high brightness and uniformity with power consumption of 2 watts.

Listings

Materials

Steel

Mounting

Surface
Wall

Ratings & Compliance

Buy America

Voltage

12 V

NEMA Type 1, UL 50 steel enclosure for surface (wall) mount, optional recess mount.
Solid state switches control up to (9) branch circuits.
Available Master-Remote options allow monitoring of up to (41) branch circuits via a single low voltage connection to a CBS panel.
Upon loss of power from any monitored circuit breaker, a CBS panel will immediately activate emergency lighting.

Universal Input 120/277 VAC.
Max 5 watts power consumption in normal mode.
Up to nine solid state sensing switches are UL Recognized and rated for continuous duty.
The output circuit to a CBS may be installed using #18-22 AWG NEC/ Class 2 wiring.
