WPTWPT
Wall Packs

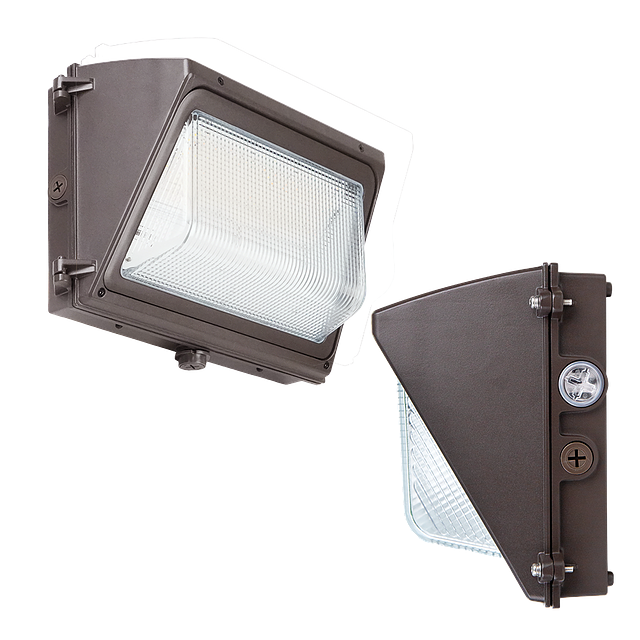

High-quality traditional wall pack. The optional factory-installed Signtex Emergency Lighting Control option ensures full emergency code compliance at the lowest possible cost
- Cast aluminum housing with dark bronze, powder coat finish. Glass lens.
- Three ½” NPT threaded openings. Easy installation in new construction or retrofit applications
- L70 hours are IES TM-21-11 calculated hours.
- cULus listed for wet locations in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
- IP65 rated for ingress protection.
- Complies with FCC Part 15, class A.
- Complies with IEEE C.62.41-2002, surge immunity protection (2kV).
- Complies with RoHS (Restriction on Hazardous Substances) requirements
CCT
- 4000K
- 5000K
Color / Finish
- Bronze
Controls Options
- Photocell
Dimming Protocol
- 1-10 V
Dimming Range
- 1%
- 10%
- 5%
Distribution
- Type I
Efficacy
- 141 lm/w
- 145 lm/w
- 146 lm/w
- 147 lm/w
- 151 lm/w
Lamp Life
- 49000 hrs
- 158000 hrs
Lamp Source
- LED
Listings
- UL
- cULus
Lumens
- 006 Lm
- 038 Lm
- 048 Lm
- 096 Lm
- 108 Lm
- 109 Lm
- 113 Lm
- 118 Lm
- 141 Lm
- 143 Lm
- 145 Lm
- 148 Lm
- 151 Lm
- 154 Lm
- 164 Lm
- 168 Lm
- 174 Lm
- 201 Lm
- 208 Lm
- 241 Lm
- 242 Lm
- 264 Lm
- 267 Lm
- 318 Lm
- 346 Lm
- 355 Lm
- 359 Lm
- 383 Lm
- 401 Lm
- 402 Lm
- 404 Lm
- 411 Lm
- 437 Lm
- 452 Lm
- 455 Lm
- 460 Lm
- 503 Lm
- 505 Lm
- 507 Lm
- 518 Lm
- 523 Lm
- 529 Lm
- 538 Lm
- 539 Lm
- 563 Lm
- 564 Lm
- 572 Lm
- 575 Lm
- 579 Lm
- 582 Lm
- 583 Lm
- 597 Lm
- 599 Lm
- 610 Lm
- 614 Lm
- 618 Lm
- 625 Lm
- 630 Lm
- 656 Lm
- 671 Lm
- 673 Lm
- 713 Lm
- 719 Lm
- 733 Lm
- 738 Lm
- 756 Lm
- 763 Lm
- 764 Lm
- 777 Lm
- 778 Lm
- 787 Lm
- 810 Lm
- 822 Lm
- 842 Lm
- 862 Lm
- 871 Lm
- 882 Lm
- 919 Lm
- 920 Lm
- 931 Lm
- 939 Lm
- 944 Lm
- 968 Lm
- 986 Lm
- 995 Lm
- 1038 Lm
- 1108 Lm
- 1109 Lm
- 1118 Lm
- 1143 Lm
- 1154 Lm
- 1168 Lm
- 1242 Lm
- 1355 Lm
- 1359 Lm
- 1404 Lm
- 1460 Lm
- 1529 Lm
- 1564 Lm
- 1756 Lm
- 1763 Lm
- 1862 Lm
- 1939 Lm
- 2096 Lm
- 2201 Lm
- 2507 Lm
- 2579 Lm
- 2871 Lm
- 3006 Lm
- 3318 Lm
- 3518 Lm
- 3618 Lm
- 4599 Lm
- 4673 Lm
- 4986 Lm
- 5539 Lm
- 5583 Lm
- 6000 Lm
- 6401 Lm
- 6437 Lm
- 6503 Lm
- 6597 Lm
- 7267 Lm
- 7810 Lm
- 8000 Lm
- 8264 Lm
- 8346 Lm
- 8582 Lm
- 8777 Lm
- 9383 Lm
- 9944 Lm
- 10000 Lm
- 10048 Lm
- 12000 Lm
- 12145 Lm
- 12241 Lm
- 15523 Lm
- 15738 Lm
- 16000 Lm
Materials
- Aluminum
Mounting
- Wall
Ratings & Compliance
- DLC
- FCC
- IP65
- RoHS
- Wet
Voltage
- 120 V
- 240 V
- 277 V
Warranty
- 5 yr
- Emergency lighting from 1,500 Lm to 5,600 Lm with adjustable Emergency Lighting Control (ELC), powered from a Signtex low-voltage central battery system.
- Available with factory-installed UL Listed Emergency Lighting Control (ELC), for connection to a Signtex central battery, DC emergency power system.
- Available in 4000k (neutral white) and 5000k (cool white) color temperatures.
- Long-life LEDs provide at least 70% of initial lumen output (L70) for > 158,000 hours of operation (16L), and at least 90% of initial lumen output (L90) for > 49,000 hours of operation (16L)
- Provides a range of 6,401 to 15,738 nominal lumens and 141 to 151 nominal lumens per watt (lm/W).
- 0-10vdc dimming drivers, which provide 10% continuous dimming are standard.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- LED chromaticity based on < 5-step ANSI quadrangles.
- LED color maintenance < 0.002 chromaticity shift over the initial 6,000 of operation.
- Power factor > 0.90.
- Total harmonic distortion < 20%.
- Color rendering index (Ra) > 70.
- Red color rendering > -28.
