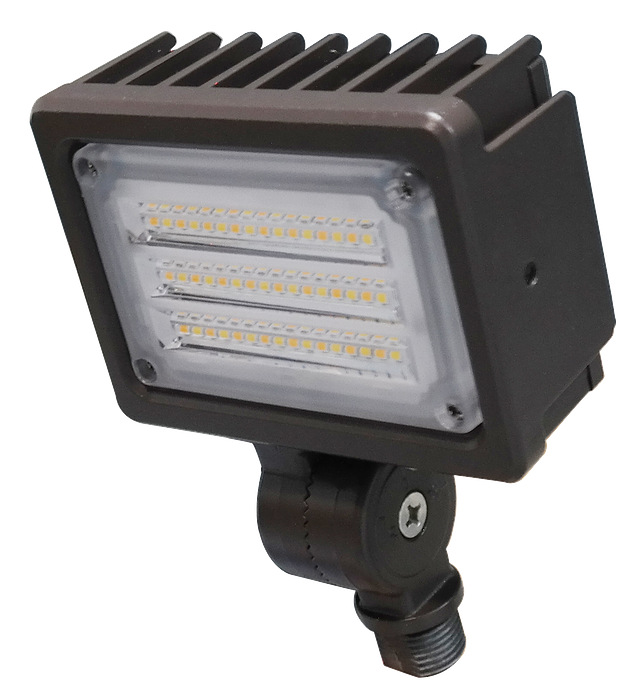

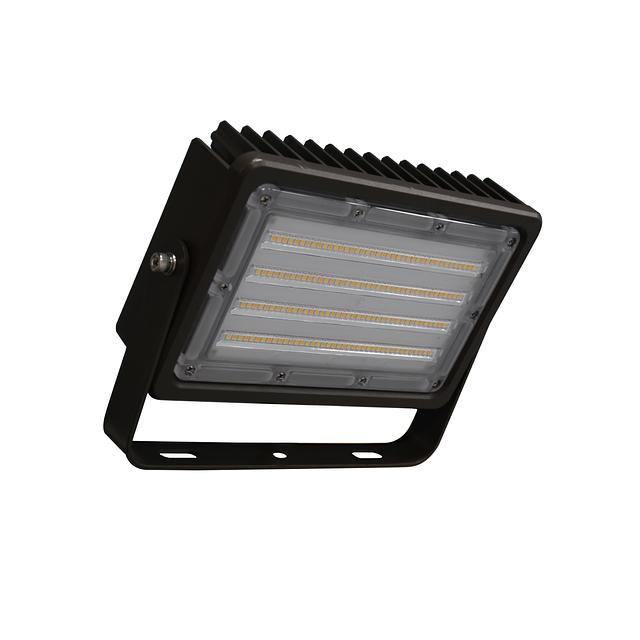

Lumen and Kelvin Field Selectable Multi-Purpose Area Light Pro
Field selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures. Long-life LEDs provide 162,000 hours of operation with at least 70% of initial lumen output (L70), and 49,000 hours with at least 90% of initial lumen output (L90). LED chromaticity based on < 6-step ANSI quadrangles. Provides a range of 14,000 to 40,000 nominal lumens. IES roadway distributions include types III & V.
- cULus listed for wet locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).Â
- DLC premium approved.Â
- Rated for 3G vibration.Â
- Lenses are rated IK08.Â
- Input transient surge protection (6kV).Â
- Complies with FCC Part 15, class A.Â
- IP65 rated for ingress protection.Â
- 5-year warranty of all electronics and housing.
CRI
- 80 CRI
Color / Finish
- Bronze
Dimming Protocol
- 0-10 V
Lamp Source
- LED
Listings
- UL
- cULus
Lumens
- 13690 Lm
- 13916 Lm
- 14000 Lm
- 14335 Lm
- 14480 Lm
- 14649 Lm
- 14765 Lm
- 14870 Lm
- 15049 Lm
- 15115 Lm
- 15656 Lm
- 16173 Lm
- 16748 Lm
- 20000 Lm
- 20219 Lm
- 20273 Lm
- 20405 Lm
- 20616 Lm
- 20939 Lm
- 21049 Lm
- 21093 Lm
- 21498 Lm
- 22312 Lm
- 22381 Lm
- 22824 Lm
- 23398 Lm
- 24000 Lm
- 24056 Lm
- 24156 Lm
- 24196 Lm
- 24505 Lm
- 24591 Lm
- 24601 Lm
- 24925 Lm
- 25153 Lm
- 25157 Lm
- 25382 Lm
- 26598 Lm
- 26737 Lm
- 26788 Lm
- 26840 Lm
- 28000 Lm
- 28485 Lm
- 28731 Lm
- 28924 Lm
- 29447 Lm
- 29907 Lm
- 30104 Lm
- 30214 Lm
- 30873 Lm
- 31402 Lm
- 31840 Lm
- 32211 Lm
- 33006 Lm
- 33629 Lm
- 33874 Lm
- 33918 Lm
- 34000 Lm
- 34329 Lm
- 35047 Lm
- 35140 Lm
- 35413 Lm
- 35862 Lm
- 36449 Lm
- 36884 Lm
- 37248 Lm
- 37862 Lm
- 39660 Lm
- 39723 Lm
- 39890 Lm
- 40000 Lm
- 40091 Lm
- 40963 Lm
- 41188 Lm
- 41239 Lm
- 41462 Lm
- 41651 Lm
- 41980 Lm
- 43432 Lm
- 44057 Lm
- 44079 Lm
- 44173 Lm
Materials
- Aluminum
- Polycarbonate
Mounting
- Arm
- Bracket
- Power Cord
- Trunnion
- Wall
Ratings & Compliance
- DLC
- FCC
- IK08
- IP65
- Wet
Voltage
- 120 V
- 22 V
- 240 V
- 277 V
- 347 V
- 480 V
Warranty
- 5 yr
- Optional NEMA photocell receptacle & photocell.
- Â Wall mount brackets and tenon adapters available.Â
- Die cast aluminum housing with dark bronze powder coat finish.Â
- Polycarbonate lens.Â
- Easy installation in new construction or retrofit.
- Universal 120-277V (50/60Hz) or 277-480V (50/60Hz) AC voltage with 6-foot incoming power cords.Â
- 0-10vdc dimming drivers are standard.Â
- Watertight, compression-type electrical connectors.Â
- Power factor > 0.90.Â
- Total harmonic distortion < 20%.Â
- Color rendering index (Ra) > 80
Resources
- Optional NEMA photocell receptacle & photocell.
- Â Wall mount brackets and tenon adapters available.Â
- Die cast aluminum housing with dark bronze powder coat finish.Â
- Polycarbonate lens.Â
- Easy installation in new construction or retrofit.
- Universal 120-277V (50/60Hz) or 277-480V (50/60Hz) AC voltage with 6-foot incoming power cords.Â
- 0-10vdc dimming drivers are standard.Â
- Watertight, compression-type electrical connectors.Â
- Power factor > 0.90.Â
- Total harmonic distortion < 20%.Â
- Color rendering index (Ra) > 80
- cULus listed for wet locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).Â
- DLC premium approved.Â
- Rated for 3G vibration.Â
- Lenses are rated IK08.Â
- Input transient surge protection (6kV).Â
- Complies with FCC Part 15, class A.Â
- IP65 rated for ingress protection.Â
- 5-year warranty of all electronics and housing.
