SPSSPS

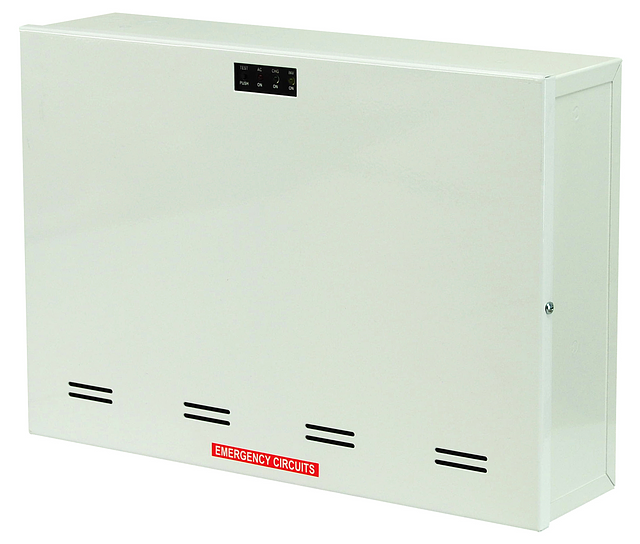

Emergency Power System
Mini-electrical inverter systems for powering up to 220W/250VA of incandescent, fluorescent, induction or LED lighting loads. Pulse width modulated (PWM) output design provides clean, 60 Hz. sinusoidal emergency power to loads. Models are available for surface, recessed or T-Grid mounting as required.
- Surface Mount (Standard Models): Surface mount models are designed for mounting to walls by means of keyhole slots provided in the back of the unit housing.Â
- Recess Mount (SPS-55/125, SPS-110/125 Only): Recess models provide recess mounting holes on both sides of the enclosure.Â
- T-Grid Mount (SPS-55/125, SPS-110/125 Only): Housing design allows simple drop-in installation between T-grid runs.Â
- Safety wires (supplied by others) are required for attachment to building structure.Â
- Unit: (excluding lamps) Full coverage against defects in materials and workmanship for 3 years from date of shipment.Â
- Battery: 3 years full warranty plus an additional 7 years of prorata coverage.Â
- All models are UL924 Listed and meet NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.Â
- Optional T-Grid models are plenum rated, to UL2043 and meets city of Chicago CCEA Requirements.Â
- UL Listed for damp locations (20° - 30°C).Â
- Optional -CEC models are Certified to CEC Under Title 20 regulations.Â
- FCC Part 15 Class A Compliant.
Color / Finish
- Black
- Bronze
- White
Dimming Protocol
- PWM
Lamp Source
- Fluorescent
- LED
Listings
- UL
Lumens
- 100 Lm
Materials
- Steel
Mounting
- Cabinet
- Ceiling
- Cove
- Grid
- Plenum
- Recessed
- Surface
- Up Light
- Wall
Ratings & Compliance
- CCEA
- Damp
- Exterior
- FCC
- Interior
- NFPA 101
- Title 20
Voltage
- 120 V
- 120-277 V
- 24 V
- 277 V
- 48 V
- Heavy duty steel cabinet is finished in white based-on powder providing scratch and corrosion resistance.Â
- Optional special color paint (-SP) finishes are available.
- Input Voltages: 120 or 277VAC ±10%.Â
- Input Frequencies: 60Hz ±2%.Â
- Input Protection: AC Line Fuses.Â
- Output Voltages: (60Hz) 120 or 277VAC.Â
- Efficiency Rating: 98% at full rated load (line).Â
- Waveform: Sinusoidal (digitally controlled).Â
- Static Voltage: ±5% during battery discharge. 0-100% linear load.Â
- Output Frequencies: 60Hz. ±0.3Hz during emergency cycle.Â
- Output Distortion: Less than 3% THD (linear load).Â
- Transfer Time: Less than 1.0 second.Â
- Load Power Factor Range: 0.44 Lead to 0.44 Lag.Â
- Minimum Loading: 0% of rated system capacity.Â
- Output Protection: Line and inverter fuses.
